Durco Mark 3 Pump – ANSI/ASME standard
Pumps
Flowserve
Send Enquiry

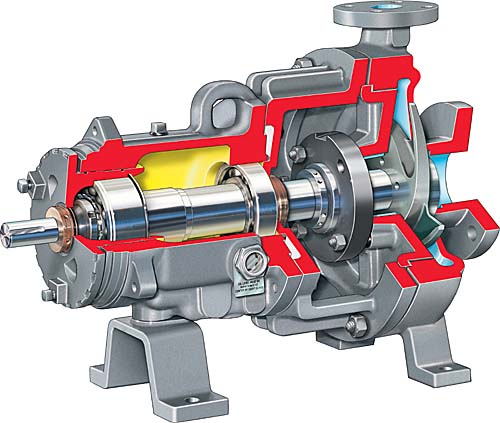

The Durco Mark 3 Pump is a centrifugal pump, also known as a chemical transfer pump, with decades of proven reliability.
It is highly regarded as an industry workhorse, transferring chemicals daily with features that enhance reliability and ease of maintenance.
The pump is designed and built to client specifications, adhering to either ANSI (ASME) or ISO centrifugal pump standards.
- Specifications
- Technical Data
- Advantages
- Industries
- Documents
- Contact
Specifications
- Reverse Vane Impeller suited for applications with double mechanical seals.
- Available options to suit various applications, increasing reliability and simplifying maintenance.
- Built to ANSI (ASME) or ISO standards.
- Back pullout design for easy maintenance without removing casing, piping, or motor.
- Open impellers are available as an alternative.
Technical Data
- SealSentry seal chamber creates an ideal seal environment, increasing mechanical seal life.
- Reverse Vane Impeller maintains constant seal chamber pressure, reducing mechanical seal wear and tear.
- Robust shaft and bearing design minimize shaft deflection, extending the life of mechanical seals and bearings.
- Micrometer adjustment for impeller clearance, allowing precise settings that do not increase seal chamber pressure.
- Flowserve datasheets provide detailed seal chamber pressure information, aiding in setup and evaluation.
Advantages
- Lower total cost of ownership due to the Reverse Vane Impeller’s ease of maintenance and consistent high-efficiency performance.
- Increased reliability and extended mechanical seal life.
- Predictable seal chamber pressures re-established after every impeller setting.
- Ease of maintenance with back pullout design.
- Enhanced mechanical seal life and reduced bearing wear compared to competitor designs.
Industries
- Chemical processing
- Petrochemical processing
- Hydrocarbon processing
- Pharmaceuticals
- Acid transfer
- Caustic and Chlor-alkali
- Man-made fibers
- Polymers
- Slurry processing
- Solvents
- Volatile organic compounds
- Waste processing
